Modelo de rodamiento N.º de rodamiento |
Aburrir |
Diámetro exterior OD |
Diámetro exterior de la brida Diámetro exterior del lado de la brida |
Ancho (mm) |
Espesor de la brida |
Carga nominal (KN) |
Velocidad máxima de salida (rev/min) |
PesoPeso |
|||||
|
d |
D |
Abierto |
ZZ |
B |
Abierto |
ZZ |
Dinámica |
Estático |
Grasa |
Aceite |
gramo |
||
|
mm |
mm |
mm |
mm |
Abierto |
ZZ |
mm |
mm |
Cr |
Corazón |
r/min |
r/min |
||
|
F682ZZ |
2 |
5 |
6.1 |
1.5 |
2.3 |
0.5 |
0.6 |
0.169 |
0.05 |
85000 |
100000 |
|
|
|
F692ZZ |
2 |
6 |
7.5 |
2.3 |
3 |
0.6 |
0.8 |
0.33 |
0.099 |
75000 |
90000 |
|
|
|
F602ZZ |
2 |
7 |
8.5 |
2.8 |
3.5 |
0.7 |
0.9 |
0.386 |
0.129 |
60000 |
71000 |
|
|
|
F683ZZ |
3 |
7 |
8.1 |
2 |
3 |
0.5 |
0.8 |
0.311 |
0.112 |
63000 |
75000 |
|
|
|
F693ZZ |
3 |
8 |
9.5 |
3 |
4 |
0.7 |
0.9 |
0.558 |
0.180 |
60000 |
67000 |
|
|
|
F603ZZ |
3 |
9 |
10.5 |
3 |
5 |
0.7 |
|
0.571 |
0.189 |
56000 |
67000 |
|
|
|
F623ZZ |
3 |
10 |
11.5 |
4 |
4 |
1 |
1 |
0.631 |
0.219 |
50000 |
60000 |
|
|
|
F684ZZ |
4 |
9 |
10.3 |
2.5 |
4 |
0.6 |
1 |
0.641 |
0.227 |
53000 |
63000 |
|
|
|
F694ZZ |
4 |
11 |
12.5 |
4 |
4 |
1 |
1 |
0.957 |
0.35 |
48000 |
56000 |
|
|
|
F604ZZ |
4 |
12 |
13.5 |
4 |
4 |
1 |
1 |
0.957 |
0.35 |
48000 |
56000 |
|
|
|
F624ZZ |
4 |
13 |
15 |
5 |
5 |
1 |
1 |
1.301 |
0488 |
40000 |
48000 |
|
|
|
F634ZZ |
4 |
16 |
18 |
5 |
5 |
1 |
1 |
1.34 |
0.523 |
36000 |
43000 |
|
|
|
F685ZZ |
5 |
11 |
12.5 |
3 |
5 |
0.8 |
1 |
0.716 |
0.282 |
45000 |
53000 |
|
|
|
F695ZZ |
5 |
13 |
15 |
4 |
4 |
1 |
1 |
1.077 |
0.432 |
43000 |
50000 |
|
|
|
F605ZZ |
5 |
14 |
16 |
5 |
5 |
1 |
1 |
1.329 |
0.507 |
40000 |
50000 |
|
|
|
F625ZZ |
5 |
16 |
18 |
5 |
5 |
1 |
1 |
1.729 |
0.675 |
36000 |
43000 |
|
|
|
F635ZZ |
5 |
19 |
22 |
6 |
6 |
1.5 |
1.5 |
2.336 |
0.896 |
32000 |
40000 |
|
|
|
F686ZZ |
6 |
13 |
15 |
3.5 |
5 |
1 |
1.1 |
1.082 |
0.442 |
40000 |
50000 |
|
|
|
F696ZZ |
6 |
15 |
17 |
5 |
5 |
1.2 |
1.2 |
1.34 |
0.523 |
40000 |
45000 |
|
|
|
F606ZZ |
6 |
17 |
19 |
6 |
6 |
1.2 |
1.2 |
2.263 |
0.846 |
38000 |
45000 |
|
|
|
F626ZZ |
6 |
19 |
22 |
6 |
6 |
1.5 |
1.5 |
2.336 |
0.896 |
32000 |
40000 |
|
|
|
F687ZZ |
7 |
14 |
16 |
3.5 |
5 |
1 |
1.1 |
1.173 |
0.513 |
40000 |
50000 |
|
|
|
F697ZZ |
7 |
17 |
19 |
5 |
5 |
1.2 |
1.2 |
1.605 |
0.719 |
36000 |
43000 |
|
|
|
F607ZZ |
7 |
19 |
22 |
6 |
6 |
1.5 |
1.5 |
2.336 |
0.896 |
36000 |
43000 |
|
|
|
F627ZZ |
7 |
22 |
25 |
7 |
7 |
1.5 |
1.5 |
3.287 |
1.379 |
30000 |
36000 |
|
|
|
F688ZZ |
8 |
16 |
18 |
4 |
5 |
1 |
1.1 |
1.252 |
0.592 |
36000 |
43000 |
|
|
|
F698ZZ |
8 |
19 |
22 |
6 |
6 |
1.5 |
1.5 |
2.237 |
0.917 |
36000 |
43000 |
|
|
|

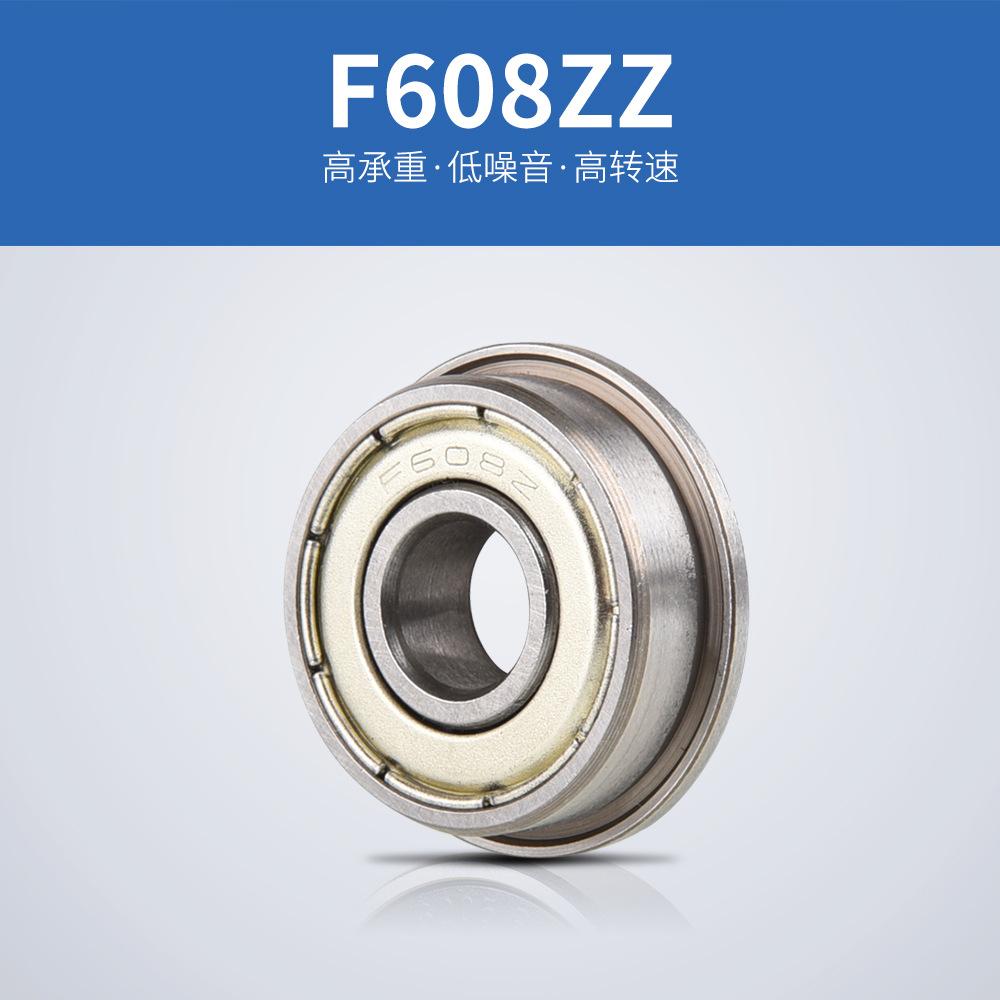

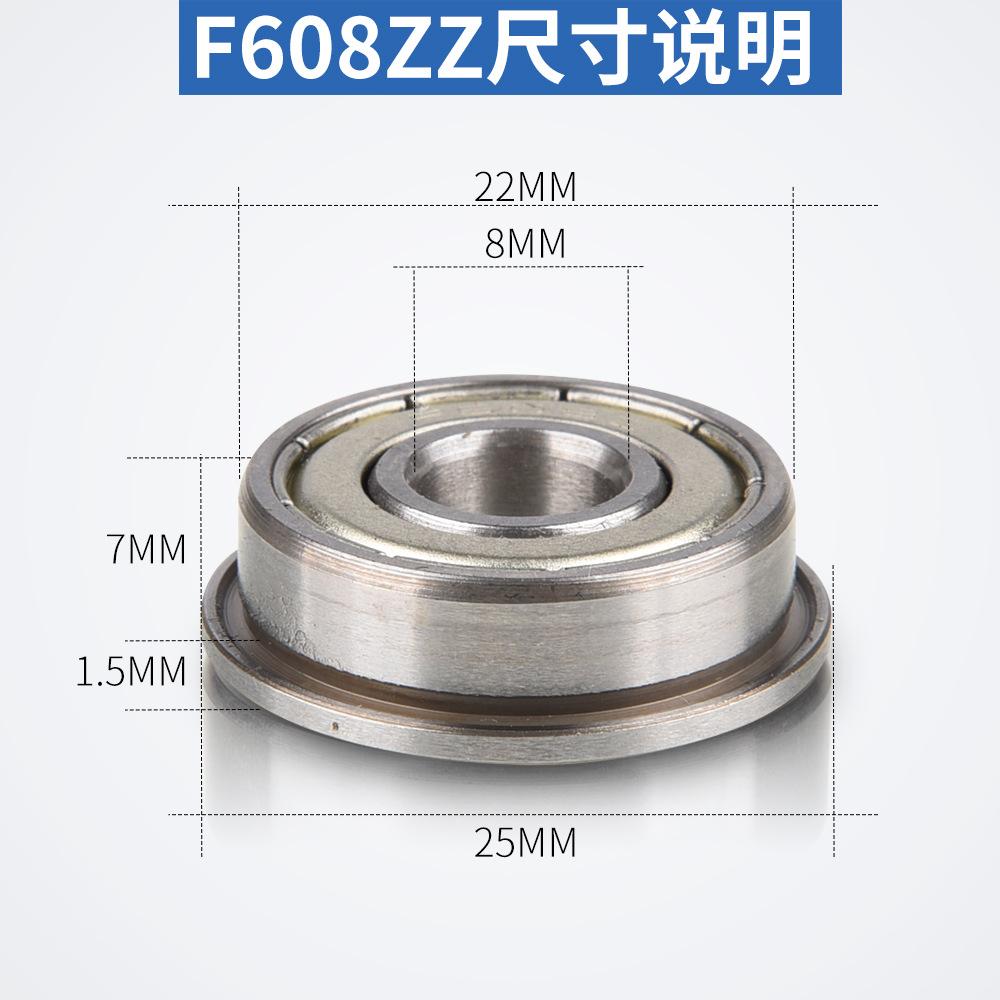

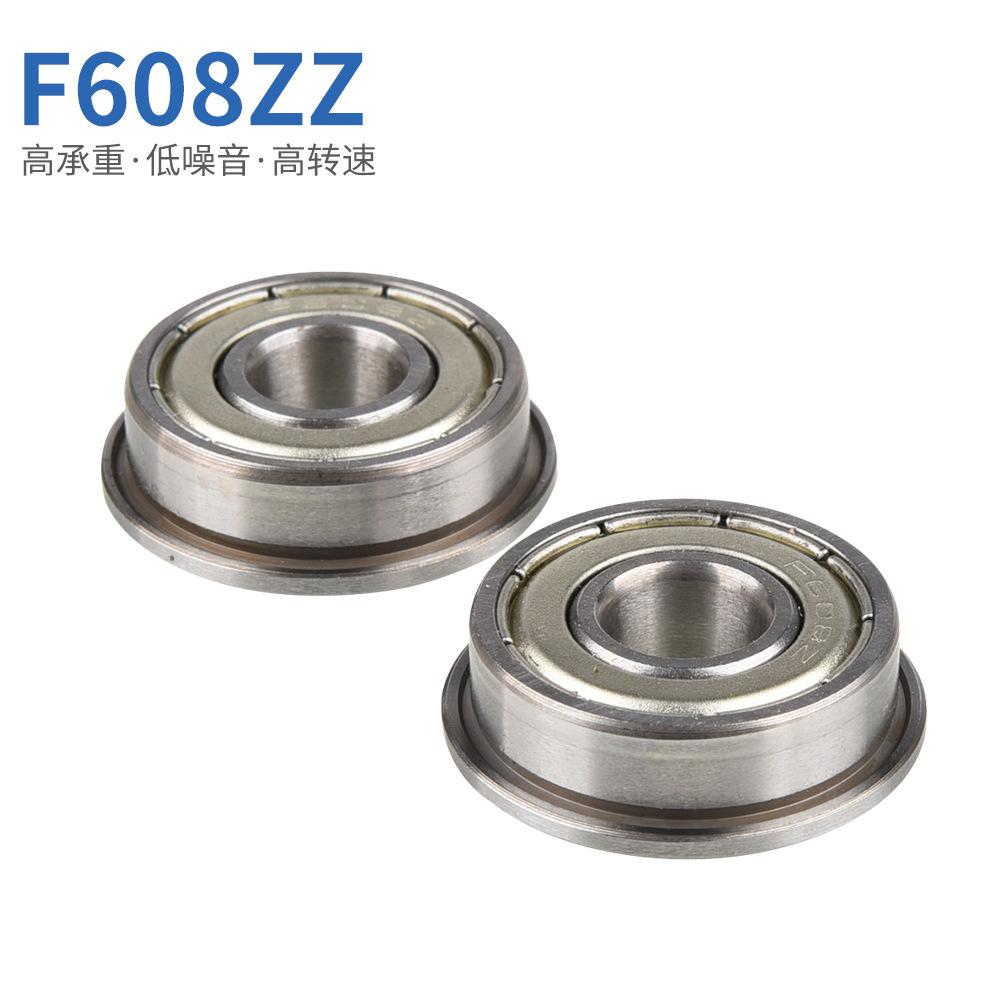

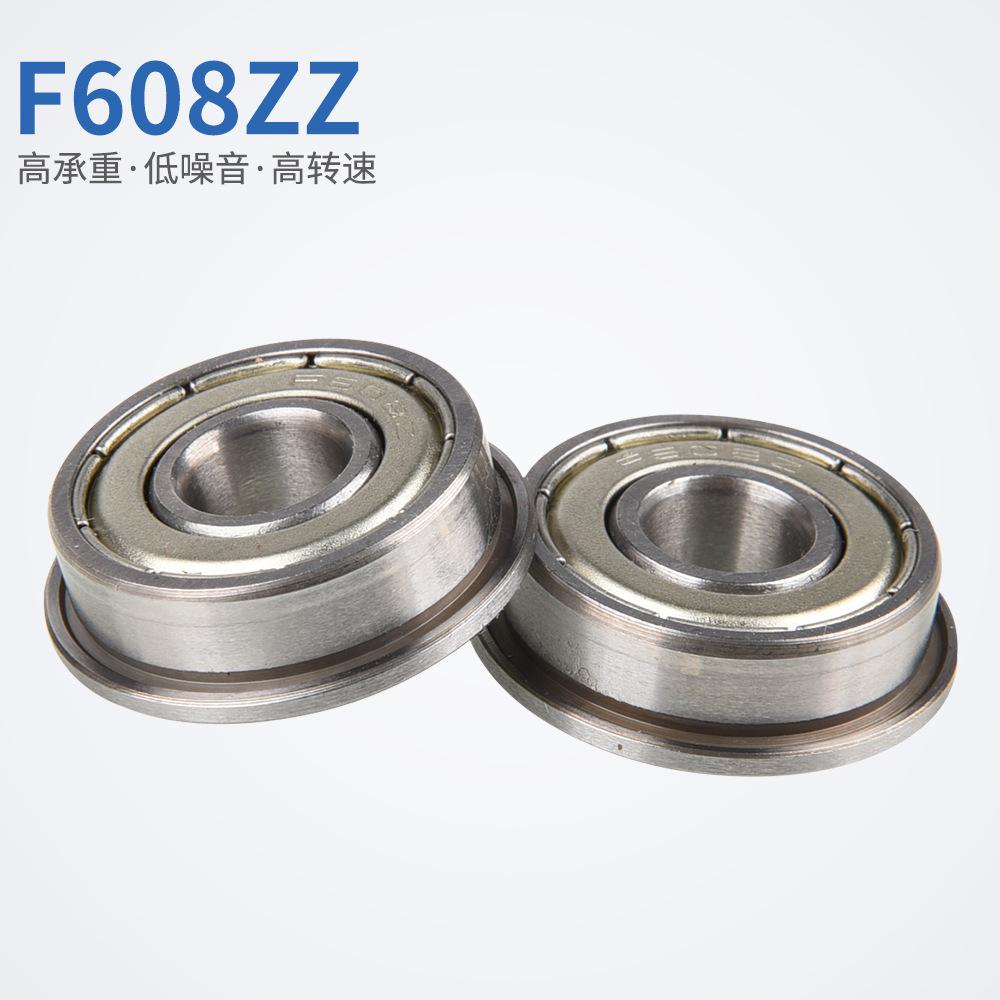

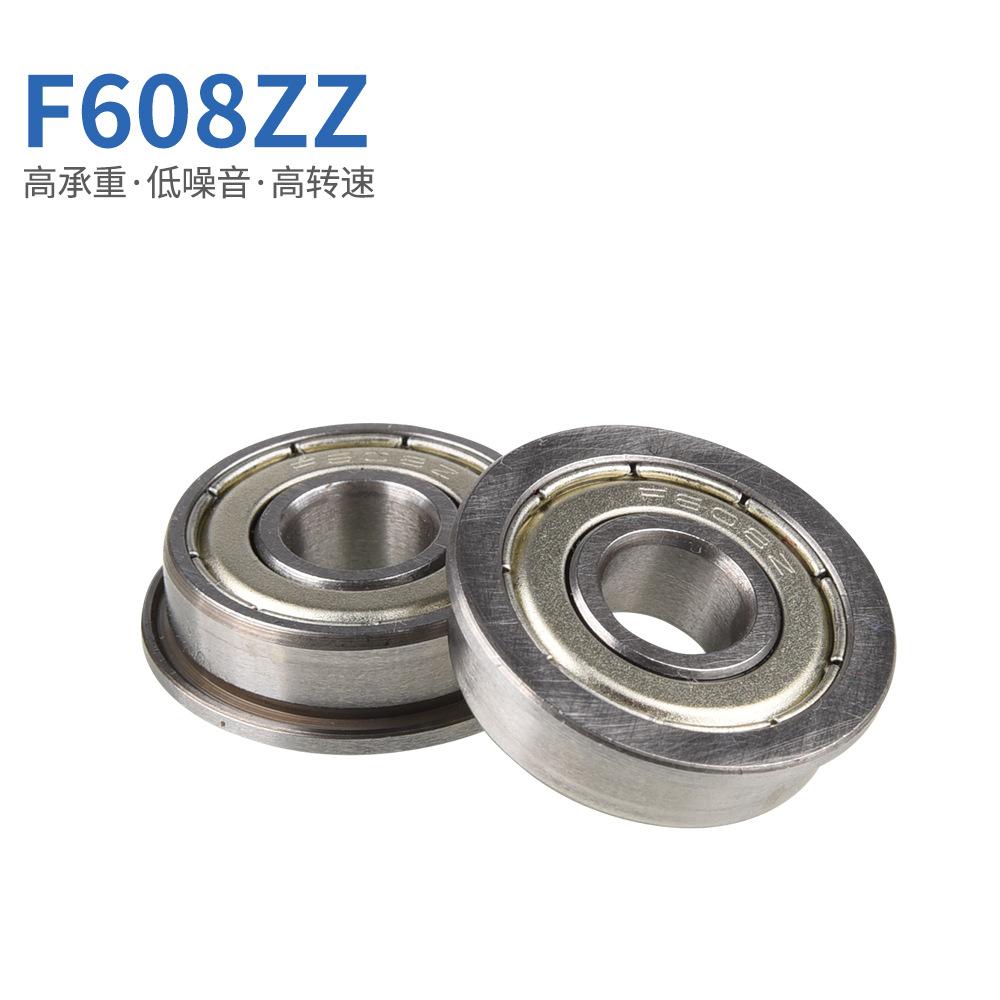

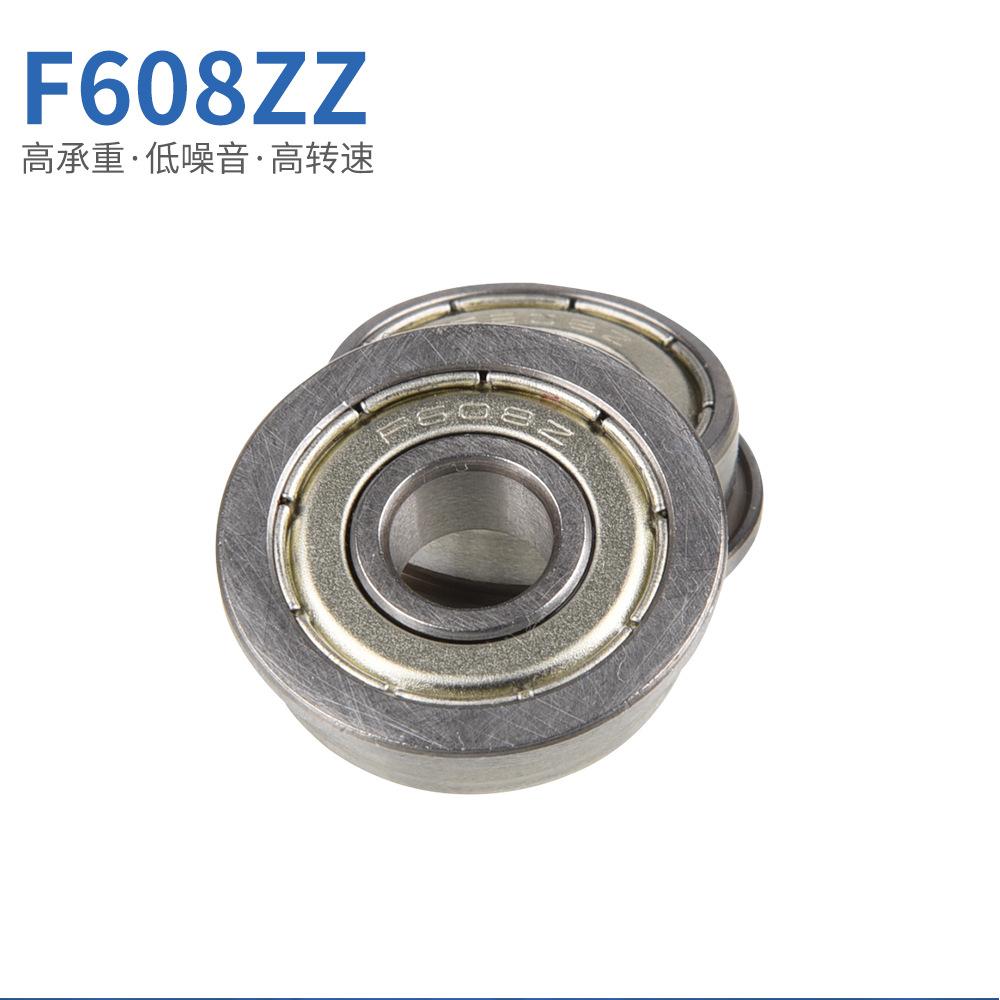

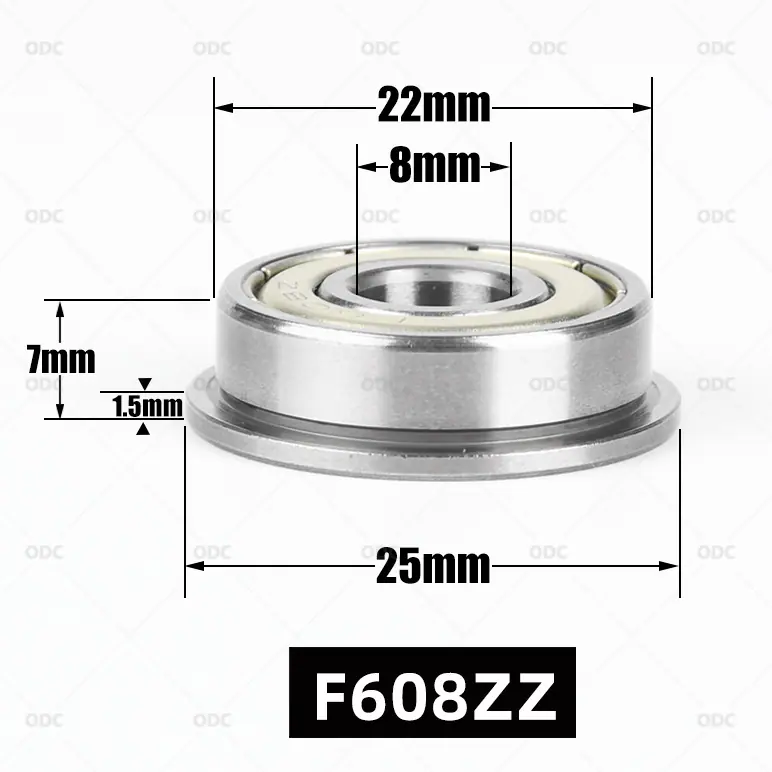

F608ZZ |
8 |
22 |
25 |
7 |
7 |
1.5 |
1.5 |
3.293 |
1.379 |
34000 |
40000 |
|
|
|
F689ZZ |
9 |
17 |
19 |
4 |
5 |
1 |
1.1 |
1.327 |
0.668 |
36000 |
43000 |
|
|
|
F699ZZ |
9 |
20 |
23 |
6 |
6 |
1.5 |
1.5 |
2.467 |
1.081 |
34000 |
40000 |
|
|
|
F6700ZZ |
10 |
15 |
16.5 |
3 |
4 |
0.8 |
0.8 |
0,85 |
0.43 |
14000 |
16000 |
|
|
|
F6800ZZ |
10 |
19 |
21 |
5 |
5 |
1 |
1 |
1.7 |
0.8 |
35000 |
42000 |
|
|
|
F6900ZZ |
10 |
22 |
25 |
6 |
6 |
1.5 |
1.5 |
2.611 |
1.223 |
31000 |
40000 |
|
|
|
F6701ZZ |
12 |
18 |
19.5 |
4 |
4 |
0.8 |
0.8 |
0.922 |
0.512 |
12000 |
14000 |
|
|
|
F6801ZZ |
12 |
21 |
23 |
5 |
5 |
0.8 |
1 |
1.911 |
1.041 |
33000 |
39000 |
|
|
|
F6901ZZ |
12 |
24 |
26.5 |
6 |
6 |
1 |
1.5 |
2.831 |
1.411 |
31000 |
36000 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
