Tornillos sueltos al por mayor de fábrica PF09-M3-16.8 Tornillos de resorte Tornillos de panel No salen del clavo
110 días
$3.708 pedido mín (600 uds)
Proveedor 4.0
Cantidad
PF09-M3-16.8
Coincidencias exactas a un precio más bajo
Productos similares a un precio más bajo
Especificaciones del producto
Marca
Yaoda/YD
Tipo de cabeza
Cylindrical head
Especificaciones del producto
PF09-M3-16.8
Tratamiento de superficies
Oxidized silver
Grado del material
Aluminium and aluminium alloys
Grado del producto
Grade a
Norma N°
GB102-86
Tipo de uña
Screw
Marca
Yaoda/YD
Tipo de cabeza
Cylindrical head
Especificaciones del producto
PF09-M3-16.8
Tratamiento de superficies
Oxidized silver
Grado del material
Aluminium and aluminium alloys
Grado del producto
Grade a
Norma N°
GB102-86
Tipo de uña
Screw
Marca
Yaoda/YD
Tipo de cabeza
Cylindrical head
Especificaciones del producto
PF09-M3-16.8
Tratamiento de superficies
Oxidized silver
Grado del material
Aluminium and aluminium alloys
Grado del producto
Grade a
Norma N°
GB102-86
Tipo de uña
Screw
Detalles del producto
El texto en las imágenes se puede traducir

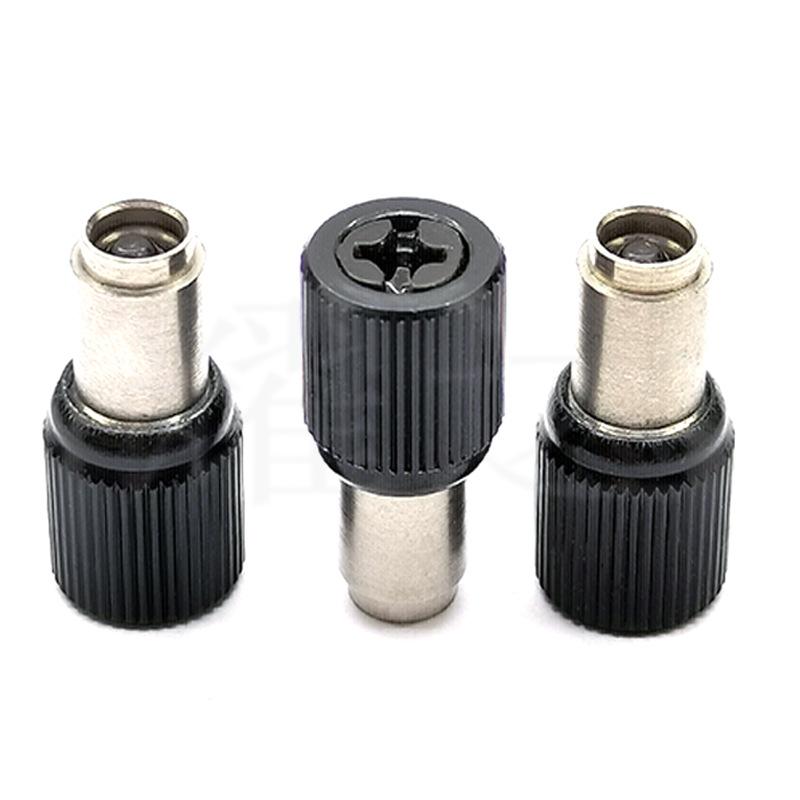

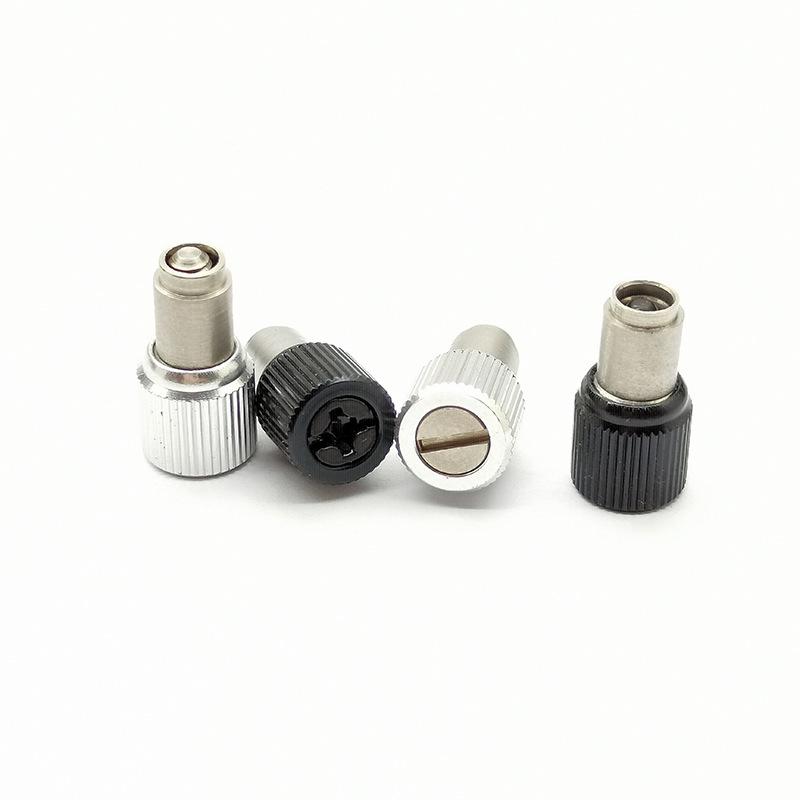

Los tornillos cautivos sueltos/tornillos de resorte de Yaoda Hardware se dividen en los siguientes tipos según el método de remachado:
Modelos de tornillos cautivos tipo remache: PF09 PF10 PF15 PF25 PF41 PF42;
Modelos de tornillo cautivo tipo remachado a presión: PF11 PF12 PF31 PF32 PF21 PF22 PF50 PF51 PFC2 PFS2;
Los tornillos cautivos se clasifican según el tipo de resorte:
Modelo de fuga de resorte: PF31 PF32 PF50 PFC2 PFS2;
Modelo con resorte incorporado: PF15 PF25 PF09 PF10 PF11 PF12 PF21 PF22
Materiales: Acero al carbono, acero inoxidable, aluminio.
| Shenzhen Yaoda Hardware cuenta con una amplia experiencia y una sólida capacidad técnica para desarrollar de forma independiente nuevos productos en la producción de diversos sujetadores, piezas y accesorios de hardware no estándar, según las necesidades específicas de los clientes. Los principales productos son: | ||||
| PF11 PF12 Fijaciones de panel autoblocantes PF11 PF12 | ||||
| PF11-M3-0 | PF11-M3.5-0 | PF11-M4-0 | PF11-M5-0 | PF11-M6-0 |
| PF11-M3-1 | PF11-M3.5-1 | PF11-M4-1 | PF11-M5-1 | PF11-M6-1 |
| PF11-440-2 | PF11-632-2 | PF11-832-2 | PF11-032-2 | PF11-0420-2 |
| PF12-M3-0 | PF12-M3.5-0 | PF12-M4-0 | PF12-M5-0 | PF12-M6-0 |
| PF12-M3-1 | PF12-M3.5-1 | PF12-M4-1 | PF12-M5-1 | PF12-M6-1 |
| PF12-M3-2 | PF12-M3.5-2 | PF12-M4-2 | PF12-M5-2 | PF12-M6-2 |
| PF12-440-0 | PF12-632-0 | PF12-832-0 | PF12-032-0 | PF12-0420-0 |
| PF12-440-1 | PF12-632-1 | PF12-832-1 | PF12-032-1 | PF12-0420-1 |
| PF12-440-2 | PF12-632-2 | PF12-832-2 | PF12-032-2 | PF12-0420-2 |
| PF21 PF22 ESTILOS DE PRESIÓN CONJUNTOS DE SUJECIÓN DE PANEL PF21 PF22 | ||||
| PF21-M3-12.3 | PF21-M3-14 | PF21-M3-15.5 | PF21-M3-17.1 | |
| PF21-M3.5-16.4 | PF21-M3.5-18 | PF21-M3.5-19.6 | PF21-M3.5-21.2 | |
| PF21-M4-16.9 | PF21-M4-18.5 | PF21-M4-20 | PF21-M4-21.6 | |
| PF21-M5-16.9 | PF21-M5-18.5 | PF21-M5-20 | PF21-M5-21.6 | |
| PF21-M6-20.5 | PF21-M6-22.1 | PF21-M6-23.7 | PF21-M6-25.3 | |
| PF21-440-12.3 | PF21-440-14 | PF21-440-15.5 | PF21-440-17.1 | |
| PF21-632-16.4 | PF21-632-18 | PF21-632-19.6 | PF21-632-21.2 | |
| PF21-832-16.9 | PF21-832-18.5 | PF21-832-20 | PF21-832-21.6 | |
| PF21-032-16.9 | PF21-032-18.5 | PF21-032-20 | PF21-032-21.6 | |
| PF22-M3.5-16.4 | PF22-M3.5-18 | PF22-M4-20 | PF22-M3.5-21.2 | |
| PF22-M4-16.9 | PF22-M4-18.5 | PF22-M5-20 | PF22-M4-21.6 | |
| PF22-M5-16.9 | PF22-M5-18.5 | PF22-M6-23.7 | PF22-M5-21.6 | |
| PF22-M6-20.5 | PF22-M6-22.1 | PF22-440-15.5 | PF22-M6-25.3 | |
| PF22-440-12.3 | PF22-440-14 | PF22-632-19.6 | PF22-440-17.1 | |
| PF22-632-16.4 | PF22-632-18 | PF22-832-20 | PF22-632-21.2 | |
| PF22-832-16.9 | PF22-832-18.5 | PF22-032-20 | PF22-832-21.6 | |
| PF22-032-16.9 | PF22-032-18.5 | PF22-0420-23.7 | PF22-032-21.6 | |
| PF22-0420-20.5 | PF22-0420-22.1 | PF22-0420-25.3 | ||
| PF31, PF32, PFS31, PFS32 CONJUNTOS DE FIJACIÓN DE PANEL CON TORNILLO DE RESORTE PF30 PF31 PF32 | ||||
| PF31-M3-16 | PF31-M4-16 | PF31-M5-16 | PF31-M3-30 | PF31-632-30 |
| PFS31-M3-16 | PFS31-M4-16 | PFS31-M5-16 | PFS31-M3-30 | PFS31-632-30 |
| PF32-M3-16 | PF32-M4-16 | PF32-M5-16 | PFS32-M3-30 | |
| PFS32-M3-16 | PFS32-M4-16 | PFS32-M5-16 | PFS32-M4-30 | |
| PF30-632-16 | PF30-832-16 | PF30-032-16 | PFS31-M4-30 | |
| PFS30-632-16 | PFS30-832-16 | PFS30-032-16 | PFS32-M5-30 | |
| PF31-632-16 | PF31-832-16 | PF31-032-16 | PFS32-M6-35 | |
| PFS31-632-16 | PFS31-832-16 | PFS31-032-16 | PFS31-M6-35 | |
| PF32-632-16 | PF32-832-16 | PF32-032-16 | PF31-440-30 | |
| PFS32-632-16 | PFS32-832-16 | PFS32-032-16 | PFS31-440-30 | |
| Ensambladores de sujetadores de paneles estilo abocardado PF42 PF41 PF42 | ||||
| PF42-M3-12.1 | PF42-M3-13.8 | PF42-M3-15.3 | PF42-M3-17.9 | |
| PF42-M3.5-16.4 | PF42-M3.5-18 | PF42-M3.5-19.6 | PF42-M3.5-21.2 | |
| PF42-M4-16.9 | PF42-M4-18.5 | PF42-M4-20 | PF42-M4-21.6 | |
| PF42-M5-16.9 | PF42-M5-18.5 | PF42-M5-20 | PF42-M5-21.6 | |
| PF42-M6-20.5 | PF42-M6-22.1 | PF42-M6-23.7 | PF41-M6-25.3 | |
| PF42-440-12.1 | PF42-440-13.8 | PF42-440-15.3 | PF42-440-17.9 | |
| PF42-632-16.4 | PF42-632-18 | PF42-632-19.6 | PF42-632-21.2 | |
| PF42-832-16.9 | PF42-832-18.5 | PF42-832-20 | PF42-832-21.6 | |
| PF42-032-16.9 | PF42-032-18.5 | PF42-032-20 | PF42-032-21.6 | |
| PF42-0420-20.5 | PF42-0420-22.1 | PF42-0420-23.7 | PF42-0420-25.3 | |
| PF42-M3-12.8 | PF42-M3-14.5 | PF42-M3-16 | PF42-M3-17.6 | |
| PF42-M3.5-18 | PF42-M3.5-19.6 | PF42-M3.5-21.2 | PF42-440-17.6 | |
| PF42-M4-18.5 | PF42-M4-20 | PF42-M4-21.6 | PF42-832-21.6 | |
| PF42-M5-18.5 | PF42-M5-20 | PF42-M5-21.6 | PF42-032-21.6 | |
| PF42-M6-22.1 | PF42-M6-23.7 | PF42-M6-25.3 | PF42-0420-25.3 | |
| PF42-440-12.8 | PF42-440-14.5 | PF42-440-16 | ||
| PF42-632-18 | PF42-632-19.6 | PF42-632-21.2 | ||
| PF42-832-18.5 | PF42-832-20 | |||
| PF42-032-18.5 | PF42-032-20 | |||
| PF42-0420-22.1 | PF42-0420-23.7 | |||
| Ensambladores de sujetadores de panel estilo abocardado PF41 PF42 | ||||
| PF41-M3-12.1 | PF41-M3-13.8 | PF41-M3-15.3 | PF41-M3-17.9 | |
| PF41-M3.5-16.4 | PF41-M3.5-18 | PF41-M3.5-19.6 | PF41-M3.5-21.2 | |
| PF41-M4-16.9 | PF41-M4-18.5 | PF41-M4-20 | PF41-M4-21.6 | |
| PF41-M5-16.9 | PF41-M5-18.5 | PF41-M5-20 | PF41-M5-21.6 | |
| PF41-M6-20.5 | PF41-M6-22.1 | PF41-M6-23.7 | PF41-M6-25.3 | |
| PF41-440-12.1 | PF41-440-13.8 | PF41-440-15.3 | PF41-440-17.9 | |
| PF41-632-16.4 | PF41-632-18 | PF41-632-19.6 | PF41-632-21.2 | |
| PF41-832-16.9 | PF41-832-18.5 | PF41-832-20 | PF41-832-21.6 | |
| PF41-032-16.9 | PF41-032-18.5 | PF41-032-20 | PF41-032-21.6 | |
| PF41-0420-20.5 | PF41-0420-22.1 | PF41-0420-23.7 | PF41-0420-25.3 | |
| PF41-M3-12.8 | PF41-M3-14.5 | PF41-M3-16 | PF41-M3-17.6 | |
| PF41-M3.5-18 | PF41-M3.5-19.6 | PF41-M3.5-21.2 | PF41-440-17.6 | |
| PF41-M4-18.5 | PF41-M4-20 | PF41-M4-21.6 | PF41-832-21.6 | |
| PF41-M5-18.5 | PF41-M5-20 | PF41-M5-21.6 | PF41-032-21.6 | |
| PF41-M6-22.1 | PF41-M6-23.7 | PF41-M6-25.3 | PF41-0420-25.3 | |
| PF41-440-12.8 | PF41-440-14.5 | PF41-440-16 | ||
| PF41-632-18 | PF41-632-19.6 | PF41-632-21.2 | ||
| PF41-832-18.5 | PF41-832-20 | |||
| PF41-032-18.5 | PF41-032-20 | |||
| PF41-0420-22.1 | PF41-0420-23.7 | |||
| PF52 CONJUNTOS DE SUJECIÓN DE PANEL DE ESTILO FLOTANTE PF51 PF52 | ||||
| PF51-M3-13.8 | PF51-M3-15.3 | PF51-M3-16.9 | ||
| PF51-M3.5-17.8 | PF51-M3.5-19.4 | PF51-M3.5-21 | ||
| PF51-M4-18.5 | PF51-M4-20 | PF51-M4-21.6 | ||
| PF51-M5-18.5 | PF51-M5-20 | PF51-M5-21.6 | ||
| PF51-M6-22.1 | PF51-M6-23.7 | PF51-M6-25.3 | ||
| PF51-440-13.8 | PF51-440-15.3 | PF51-440-16.9 | ||
| PF51-632-17.8 | PF51-632-19.4 | PF51-632-21 | ||
| PF51-832-18.5 | PF51-832-20 | PF51-832-21.6 | ||
| PF51-032-18.5 | PF51-032-20 | PF51-032-21.6 | ||
| PF51-0420-22.1 | PF51-0420-23.7 | PF51-0420-25.3 | ||
| Conjuntos de sujetadores de panel empotrables tipo PFC2P PFC2P | ||||
| PFC2P-M3-40 | PFC2P-M3-62 | |||
| PFC2P-M4-50 | PFC2P-M4-72 | PFC2P-M4-94 | ||
| PFC2P-M5-50 | PFC2P-M5-72 | PFC2P-M5-94 | ||
| PFC2P-M6-60 | PFC2P-M6-82 | PFC2P-M6-04 | ||
| PFC2P-440-40 | PFC2P-440-62 | |||
| PFC2P-632-50 | PFC2P-632-72 | PFC2P-632-94 | ||
| PFC2P-832-50 | PFC2P-832-72 | PFC2P-832-94 | ||
| PFC2P-032-50 | PFC2P-032-72 | PFC2P-032-94 | ||
| PFC2P-0420-60 | PFC2P-0420-82 | PFC2P-0420-04 | ||
| Conjuntos de fijación de paneles PFC2 PFC2 PFS2 | ||||
| PFC2-M3-40 | PFC2-M3-62 | |||
| PFC2-M4-50 | PFC2-M4-72 | PFC2-M4-94 | ||
| PFC2-M5-50 | PFC2-M5-72 | PFC2-M5-94 | ||
| PFC2-M6-60 | PFC2-M6-82 | PFC2-M6-04 | ||
| PFC2-440-40 | PFC2-440-62 | |||
| PFC2-632-50 | PFC2-632-72 | PFC2-632-94 | ||
| PFS3 tipo suelto MINIATURA PERFIL BAJO SERIE PFC3 PFS3 | ||||
| PFS3-M3-40 | PFC3-M3-40 | |||
| PFS3-440-40 | PFC3-440-40 | |||
| PFS3-632-40 | PFC3-632-40 | |||
| PFS4 tipo suelto MINIATURA PERFIL BAJO SERIE PFC4 PFS4 | ||||
| PFS4-M3-40 | PFC4-M3-40 | |||
| PFS4-M3-62 | PFC4-M3-62 | |||
| PFS4-440-40 | PFC4-440-40 | |||
| PFS4-440-62 | PFC4-440-62 | |||
| PFS4-632-40 | PFC4-632-40 | |||
| PFS4-632-62 | PFC4-632-62 | |||
| Tornillo de resorte tipo PFK CONJUNTOS DE MONTAJE EN PLACA PFK | ||||
| PFK-M3-40 | PFK-M3-40 | PFK-832-40 | ||
| PFK-M3-62 | PFK-M3-62 | PFK-832-50 | ||
| PFK-M3-84 | PFK-M3-84 | |||
| PFK-440-40 | PFK-440-40 | |||
| PFK-440-62 | PFK-440-62 | |||
| PFK-440-84 | PFK-440-84 | |||
| PFK-632-40 | PFK-632-40 | |||
| PFK-632-62 | PFK-632-62 | |||
| PFK-632-84 | PFK-632-84 | |||
| CONJUNTOS DE SUJECIÓN DE PANELES PFHV | ||||
| PFHV-M3-0 | PFHV-M3.5-0 | PFHV-M4-0 | ||
| PFHV-M3-1 | PFHV-M3.5-1 | PFHV-M4-1 | ||
| PFHV-440-0 | PFHV-632-0 | PFHV-832-0 | ||
| PFHV-440-1 | PFHV-632-1 | PFHV-832-1 | ||
