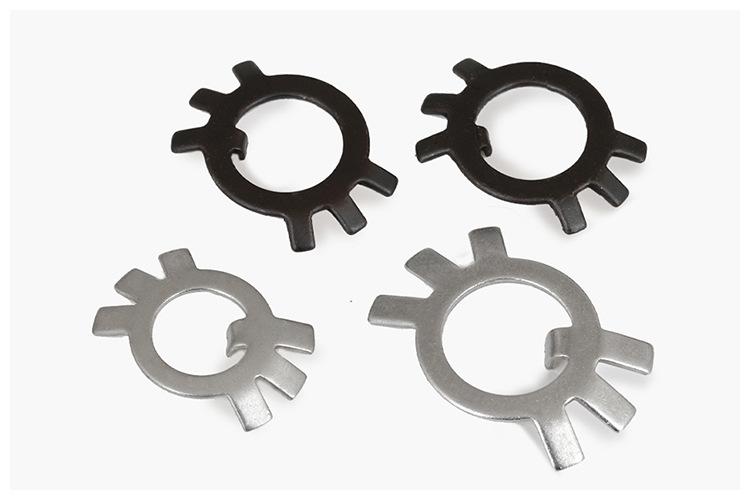

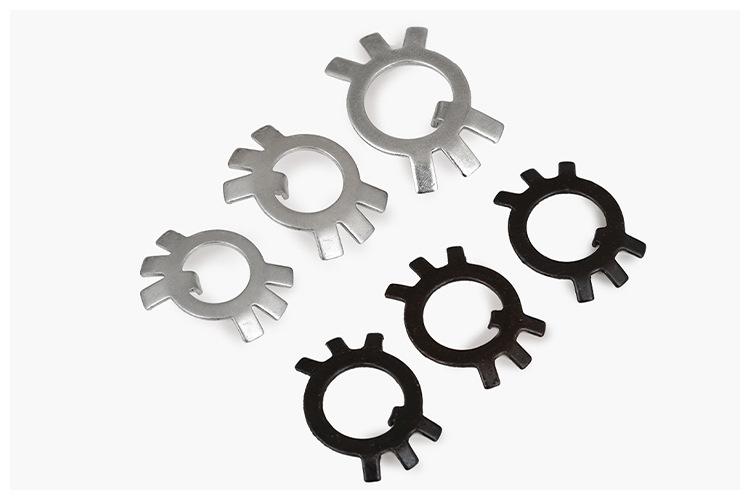

Tuerca redonda de acero inoxidable 304 con arandela de tope, arandela de seguridad, arandela de seis garras, placa de bloqueo tipo tortuga GB858
110 días
$23.334 pedido mín (600 uds)
Proveedor 4.5
Variaciones
Apricot
Army Green
Beige White
Productos similares a un precio más bajo
Especificaciones del producto
Especificaciones del producto
Default Item
Marca
Other
Norma N°
ANSI.B18.22.1A
Tratamiento de superficies
Other
Grado del material
Other
Grado del producto
Other
Especificaciones y modelos
♥♥Please ignore the color in front of the specification♥♥, ♥♥♥♥The following are black carbon steel series♥♥♥♥...
Especificaciones del producto
Default Item
Marca
Other
Norma N°
ANSI.B18.22.1A
Tratamiento de superficies
Other
Grado del material
Other
Grado del producto
Other
Especificaciones y modelos
♥♥Please ignore the color in front of the specification♥♥, ♥♥♥♥The following are black carbon steel series♥♥♥♥...
Especificaciones del producto
Default Item
Marca
Other
Norma N°
ANSI.B18.22.1A
Tratamiento de superficies
Other
Grado del material
Other
Grado del producto
Other
Especificaciones y modelos
♥♥Please ignore the color in front of the specification♥♥, ♥♥♥♥The following are black carbon steel series♥♥♥♥...
Detalles del producto
El texto en las imágenes se puede traducir
 | ||||||||

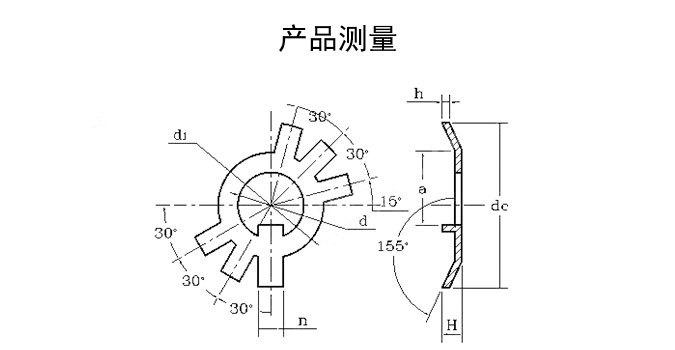

| Unidad: mm | ||||||||
| Especificación | d | corriente continua | d1 | h | H | norte | a | La masa de cada 100 productos de acero ≈ kg |
| M10 | 10.5 | 25 | 16 | 1 | 3 | 3.8 | 8 | 1.91 |
| M12 | 12.5 | 28 | 19 | 1 | 3 | 3.8 | 9 | 2.3 |
| M14 | 14.5 | 32 | 20 | 1 | 3 | 3.8 | 11 | 2.5 |
| M16 | 16.5 | 34 | 22 | 1 | 3 | 4.8 | 13 | 2,99 |
| M18 | 18.5 | 35 | 24 | 1 | 4 | 4.8 | 15 | 3.04 |
| M20 | 20.5 | 38 | 27 | 1 | 4 | 4.8 | 17 | 3.5 |
| M22 | 22.5 | 42 | 30 | 1 | 4 | 4.8 | 19 | 4.14 |
| M24 | 24.5 | 45 | 34 | 1 | 4 | 4.8 | 21 | 5.01 |
| M25 | 25.5 | 45 | 34 | 1 | 4 | 4.8 | 22 | 4.7 |
| M27 | 27.5 | 48 | 37 | 1 | 5 | 4.8 | 24 | 5.4 |
| M30 | 30.5 | 52 | 40 | 1 | 5 | 4.8 | 27 | 5.87 |
| M33 | 33.5 | 56 | 43 | 1.5 | 5 | 5.7 | 30 | 10.01 |
| M35 | 35.5 | 56 | 43 | 1.5 | 5 | 5.7 | 32 | 8.75 |
| M36 | 36.5 | 60 | 46 | 1.5 | 5 | 5.7 | 33 | 10.76 |
| M39 | 39.5 | 62 | 49 | 1.5 | 5 | 5.7 | 36 | 11.06 |
| M40 | 40.5 | 62 | 49 | 1.5 | 5 | 5.7 | 37 | 10.33 |
| M42 | 42.5 | 66 | 53 | 1.5 | 5 | 5.7 | 39 | 12.55 |
| M45 | 45.5 | 72 | 59 | 1.5 | 5 | 5.7 | 42 | 16.3 |
| M48 | 48.5 | 76 | 61 | 1.5 | 6 | 7.7 | 45 | 17.68 |
| M50 | 50.5 | 76 | 61 | 1.5 | 6 | 7.7 | 47 | 15.86 |
| M52 | 52.5 | 82 | 67 | 1.5 | 6 | 7.7 | 49 | 21.12 |
| M55 | 56 | 82 | 67 | 1.5 | 6 | 7.7 | 52 | 17.67 |
| M56 | 57 | 90 | 74 | 1.5 | 6 | 7.7 | 53 | 26 |
| M60 | 61 | 5.3 | 79 | 1.5 | 6 | 7.7 | 57 | 28.4 |
| M64 | 65 | 100 | 84 | 1.5 | 6 | 7.7 | 61 | 31.55 |
| M65 | 66 | 100 | 84 | 1.5 | 6 | 7.7 | 62 | 30.35 |
| M68 | 69 | 105 | 88 | 1.5 | 6 | 9.6 | 65 | 34.69 |
| M72 | 73 | 110 | 93 | 1.5 | 7 | 9.6 | 69 | 37.9 |
| M75 | 76 | 110 | 93 | 1.5 | 7 | 9.6 | 71 | 33.9 |
| M76 | 77 | 115 | 98 | 1.5 | 7 | 9.6 | 72 | 41.27 |
| M80 | 81 | 120 | 103 | 1.5 | 7 | 9.6 | 76 | 44.7 |
| M85 | 86 | 125 | 108 | 1.5 | 7 | 9.6 | 81 | 46.72 |
| M90 | 91 | 130 | 112 | 2 | 7 | 11.6 | 86 | 64.82 |
| M95 | 96 | 135 | 117 | 2 | 7 | 11.6 | 91 | 67.4 |
| M100 | 101 | 140 | 122 | 2 | 7 | 11.6 | 96 | 69.97 |
| M105 | 106 | 145 | 127 | 2 | 7 | 11.6 | 101 | 72.54 |
| M110 | 111 | 156 | 135 | 2 | 7 | 13.5 | 106 | 89.08 |
| M115 | 116 | 160 | 140 | 2 | 7 | 13.5 | 111 | 91.33 |
| M120 | 121 | 166 | 145 | 2 | 7 | 13.5 | 116 | 94.96 |
| M125 | 126 | 170 | 150 | 2 | 7 | 13.5 | 121 | 97.21 |
| M130 | 131 | 176 | 155 | 2 | 7 | 13.5 | 126 | 100.8 |
| M140 | 141 | 186 | 165 | 2 | 7 | 13.5 | 136 | 106.7 |
| M150 | 154 | 206 | 180 | 2.5 | 7 | 15.5 | 146 | 175.9 |
| M160 | 161 | 216 | 190 | 2.5 | 8 | 15.5 | 156 | 185.1 |
| M170 | 171 | 226 | 200 | 2.5 | 8 | 15.5 | 166 | 194 |
| M180 | 181 | 236 | 210 | 2.5 | 8 | 15.5 | 176 | 202.9 |
| M190 | 191 | 246 | 220 | 2.5 | 8 | 15.5 | 186 | 211.7 |
| M200 | 201 | 256 | 230 | 2.5 | 8 | 15.5 | 196 | 220.6 |
| Los datos anteriores son mediciones manuales de un solo lote. Existen ciertos errores. Consulte el producto real. Si le importa, tenga cuidado. | ||||||||
