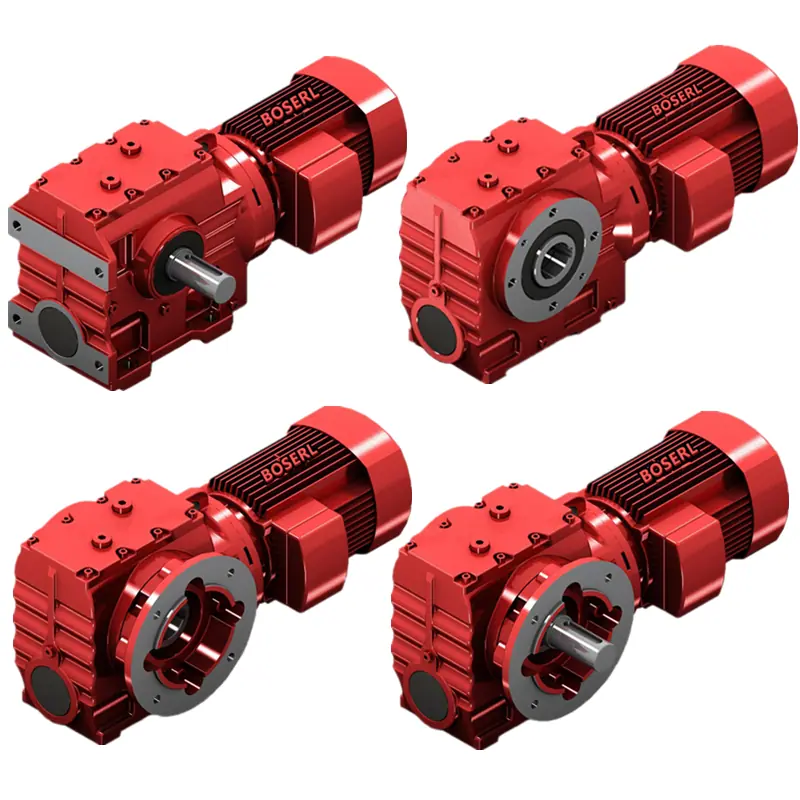

Motor de 0.37KW con reductor autoblocante SA37DVE71D4 SA37DT71D4 SA37DRE71D4

Potencia del motor reductor SA37:SA37-Y0.12KW, SA37-Y0.18KW, SA37-Y0.25KW, SA37-Y0.37KW, SA37-Y0.55KW, SA37-Y0.75KW, SA37-Y1.1KW, SA37-Y1.5KW (puede equiparse con motor de frecuencia variable, motor de freno, motor a prueba de explosiones, servomotor, motor de CA, motor de CC, motor trifásico, motor monofásico).

Reductor SA37 relación de reducción:157.43, 144.40, 122.94, 106, 98.80, 86.36, 80.96, 71.44, 63.33, 55.93, 53.83, 51.30, 43.68, 37.66, 35.10, 30.68, 28.76, 25.38, 22.50, 19.89, 11.13, 18.24, 15.53, 13.39, 12.48, 10.91, 10.23, 9.02, 6.3 Ho, 14.77, .39 (Dos reductores combinados para obtener una relación de reducción mayor) 。

Velocidad de salida del reductor SA37:8.9 rpm, 9.7 rpm, 11 rpm, 13 rpm, 14 rpm, 16 rpm, 17 rpm, 20 rpm, 22 rpm, 25 rpm, 26 rpm, 27 rpm, 32 rpm, 37 rpm, 40 rpm, 46 rpm, 49 rpm, 55 rpm, 62 rpm, 70 rpm, 73 rpm, 77 rpm, 90 rpm, 105 rpm, 112 rpm, 128 rpm, 137 rpm, 155 rpm, 175 rpm, 206 rpm, 221 rpm, 260 rpm, 288 rpm, 353 rpm. (Las velocidades anteriores se calculan para motores de cuatro etapas, y se pueden calcular para motores de dos etapas, motores de seis etapas o motores de frecuencia variable)
Par de salida del reductor SA37:92N.m,91N.m,88N.m,87N.m,86N.m,85N.m,84N.m,82N.m,81N.m,80N.m,79N.m,78N.m,76N.m,75N.m,74N.m,73N.m,52N.m,71N.m,50N.m,49N.m,48N.m,47N.m,46N.m,45N.m,43N.m,35N.m,34N.m,33N.m,32N.m. (Los pares anteriores se obtienen del motor de cuatro etapas. Si necesita un par mayor que el anterior, puede aumentar la potencia del motor, aumentar el modelo o usar dos en combinación)

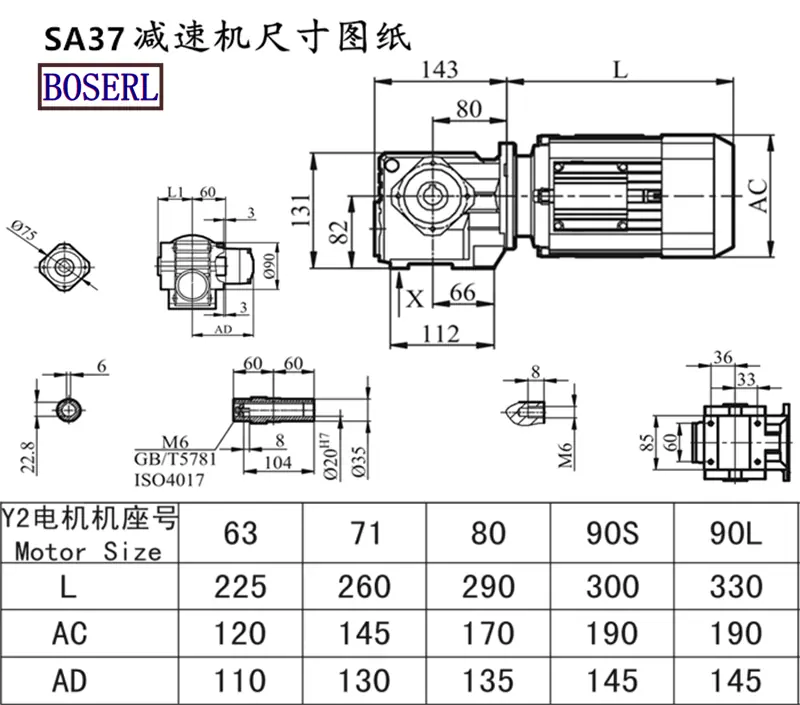

Dimensiones de instalación del reductor SA37:Orificio de salida + llave Φ22.8 (personalizable), altura 131*ancho 120*largo 143

Modelo de motor reductor SA37:SA37-Y0.12KW,SA37-Y0.18KW,SA37-Y0.25KW,SA37-Y0.37KW,SA37-Y0.55KW,SA37-Y0.75KW,SA37-Y1.1KW,SA37-Y1.5KW,SA37DV63S4,SA37DV71S4,SA37DV80S4,SA37DV90L4,SA37DM63L4,SA37DM63S4,SA37DM71S4,SA37DM80S4,SA37DM90L4,SA37DV63L4,SA37DRN63S4,SA37DRN71S4,SA37DRN80S4,SA37DRN90L4,SA37DV63L4,SA37DT63S4,SA37DT71S4,SA37DT80S4,SA37DT90L4,SA37DT63L4,SA37DRE63S4,SA37DRE71S4,SA37DRE80S4,SA37DRE90L4,SA37DRE63L4,SA37DVE63S4,SA37DVE71S4,SA37DVE80S4,SA37DVE90L4,SA37DVE63L4,SA37DRS63S4,SA37DRS71S4,SA37DRS80S4,SA37DRS90L4,SA37DRS63L4,SA37DR63S4,SA37DR71S4,SA37DR80S4,SA37DR90L4,SA37DR63L4,SA37DV63M4,SA37DV71M4,SA37DV80M4,SA37DV90M4,SA37DRN63M4,SA37DRN71M4,SA37DRN80M4,SA37DRN90M4,SA37DT63M4,SA37DT71M4,SA37DT80M4,SA37DT90M4,SA37DVE63M4,SA37DVE71M4,SA37DVE80M4,SA37DVE90M4,SA37DRE63M4,SA37DRE71M4,SA37DRE80M4,SA37DRE90M4,SA37DRS63M4,SA37DRS71M4,SA37DRS80M4,SA37DRS90M4,SA37DM63M4,SA37DM71M4,SA37DM80M4,SA37DM90M4,SA37Y63M4,SA37Y71M4,SA37Y80M4,SA37Y90M4。
