Motorreductor de engranajes cónicos helicoidales de 0,18 KW KA47DRS63L4 KA47DT63L4 KA47DM63L4

KA47 Potencia del Motor Reductor:KA47-Y0.12KW,KA47-Y0.18KW,KA47-Y0.25KW,KA47-Y0.37KW,KA47-Y0.55KW,KA47-Y0.75KW,KA47-Y1.1KW,KA47-Y1.5KW,KA47-Y2.2KW,KA47-Y3KW（se puede equipar con motor de frecuencia variable, motor de freno, motor a prueba de explosiones, servomotor, motor de CA, motor de CC, motor trifásico, motor monofásico）。

Relación de reducción KA47:131.87 a,121.48 a,104.37 a,90.86 a,85.12 a,75.20 a,69.84 a,63.30 a,56.83 a,48.95 a,46.03 a,39.61 a,35.39 a,31.30 a,29.32 a,25.91 a,24.06 a,21.81 a,19.58 a,16.86 a,15.86 a,13.65 a,12.19 a,11.77 a,10.56 a,9.10 a,8.56 a,7.36 a,6.58 a,5.81 a,4.64 (Dos reductores combinados para obtener una relación de reducción mayor) 。

Velocidad de salida del reductor KA47:11 RPM, 12 RPM, 13 RPM, 15 RPM, 16 RPM, 19 RPM, 20 RPM, 22 RPM, 25 RPM, 29 RPM, 30 RPM, 35 RPM, 40 RPM, 45 RPM, 48 RPM, 54 RPM, 58 RPM, 64 RPM, 72 RPM, 83 RPM, 88 RPM, 103 RPM, 115 RPM, 119 RPM, 133 RPM, 154 RPM, 164 RPM, 190 RPM, 213 RPM, 241 RPM, 302 RPM. (Las RPM anteriores se calculan para un motor de cuatro polos; los cálculos se pueden realizar utilizando un motor de dos polos, un motor de seis polos o un variador de frecuencia.)
KA47 Par de Salida del Reductor:5920 N.m, 5700 N.m, 5520 N.m, 5170 N.m, 4970 N.m, 4710 N.m, 4440 N.m, 4220 N.m, 4080 N.m, 3890 N.m, 3720 N.m, 4060 N.m, 3830 N.m, 3540 N.m, 3500 N.m, 3380 N.m, 3270 N.m, 3140 N.m, 2980 N.m. (Los valores de par listados anteriormente son para un motor de cuatro polos. Para valores de par más altos, aumente la potencia y el modelo del motor, o use una combinación de dos motores.)

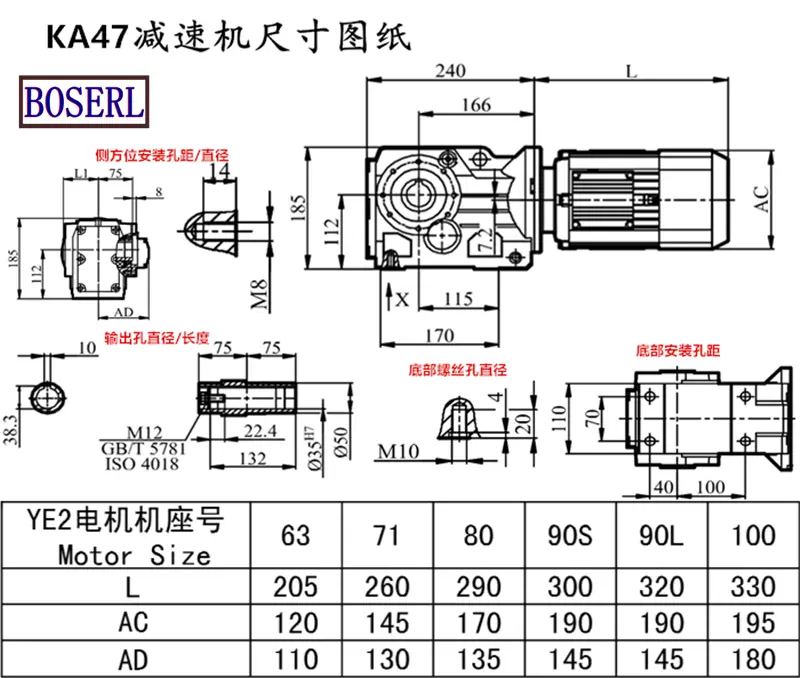

Dimensiones de Instalación del Reductor KA47:Orificio de salida + chaveta Φ38.3 (personalizable), altura 185 * ancho 145 * largo 240

Modelo de Motor Reductor KA47:KA47-Y0.12KW,KA47-Y0.18KW,KA47-Y0.25KW,KA47-Y0.37KW,KA47-Y0.55KW,KA47-Y0.75KW,KA47-Y1.1KW,KA47-Y1.5KW,KA47-Y2.2KW,KA47-Y3KW,KA47DRN63S4,KA47DRN71S4,KA47DRN80S4,KA47DRN90L4,KA47DRN100S4,KA47DRN63L4,KA47DV63S4,KA47DV71S4,KA47DV80S4,KA47DV90L4,KA47DV100S4,KA47DV63L4,KA47DM63S4,KA47DM71S4,KA47DM80S4,KA47DM90L4,KA47DM100S4,KA47DM63L4,KA47DT63S4,KA47DT71S4,KA47DT80S4,KA47DT90L4,KA47DT100S4,KA47DT63L4,KA47DRS63S4,KA47DRS71S4,KA47DRS80S4,KA47DRS90L4,KA47DRS100S4,KA47DRS63L4,KA47DR63S4,KA47DR71S4,KA47DR80S4,KA47DR90L4,KA47DR100S4,KA47DR63L4,KA47DVE63S4,KA47DVE71S4,KA47DVE80S4,KA47DVE90L4,KA47DVE100S4,KA47DVE63L4,KA47DRN63M4,KA47DRN71M4,KA47DRN80M4,KA47DRN90M4,KA47DRN100M4,KA47DV63M4,KA47DV71M4,KA47DV80M4,KA47DV90M4,KA47DV100M4,KA47DT63M4,KA47DT71M4,KA47DT80M4,KA47DT90M4,KA47DT100M4,KA47DRS63M4,KA47DRS71M4,KA47DRS80M4,KA47DRS90M4,KA47DRS100M4,KA47DR63M4,KA47DR71M4,KA47DR80M4,KA47DR90M4,KA47DR100M4,KA47DVE63M4,KA47DVE71M4,KA47DVE80M4,KA47DVE90M4,KA47DVE100M4,KA47DM63M4,KA47DM71M4,KA47DM80M4,KA47DM90M4,KA47DM100M4,KA47Y63M4,KA47Y71M4,KA47Y80M4,KA47Y90M4,KA47Y100M4.
