Reductor de motor de freno KAF87-YVP112M4 KAF87-YEJ112M4 KAF87-YVB112M4

Potencia del motor reductor KAF87: KAF87-Y0.37KW, KAF87-Y0.55KW, KAF87-Y0.75KW, KAF87-Y1.1KW, KAF87-Y1.5KW, KAF87-Y2.2KW, KAF87-Y3KW, KAF87-Y4KW, KAF87-Y5.5KW, KAF87-Y7.5KW, KAF87-Y11KW, KAF87-Y15KW, KAF87-Y18.5KW, KAF87-Y22KW (puede equiparse con motor de frecuencia variable, motor de freno, motor a prueba de explosiones, servomotor, motor de CA, motor de CC, motor trifásico, motor monofásico).

Relación de reducción del reductor KAF87: 197,37, 174,19, 164,34, 147,32, 126,91, 115,82, 102,71, 86,34, 79,34, 70,46, 63, 56,64, 49,16, 44,02, 36,52, 31,39, 27,88, 24,92, 22,41, 19,45, 17,42, 16, 14,45, 12,56, 11,17, 10, 8,29, 7,21 (dos reductores combinados para obtener una relación de reducción mayor)

Velocidad de salida del reductor KAF87: 7,1 rpm, 8 rpm, 8,5 rpm, 9,5 rpm, 11 rpm, 12 rpm, 14 rpm, 16 rpm, 18 rpm, 20 rpm, 22 rpm, 25 rpm, 28 rpm, 32 rpm, 38 rpm, 45 rpm, 50 rpm, 56 rpm, 62 rpm, 72 rpm, 80 rpm, 88 rpm, 97 rpm, 111 rpm, 125 rpm, 140 rpm, 169 rpm, 194 rpm (las velocidades anteriores se calculan todas con motores de cuatro etapas y se pueden calcular con motores de dos etapas, motores de seis etapas o motores de frecuencia variable).
Par de salida del reductor KAF87: 1300 N.m, 1400 N.m, 1500 N.m, 1800 N.m, 2000 N.m, 2100 N.m, 2200 N.m, 2300 N.m, 2500 N.m, 2600 N.m, 2700 N.m. (Los pares anteriores se obtienen con el motor de cuatro etapas. Si se requiere un par mayor, se puede aumentar la potencia del motor, el modelo o combinar ambos).

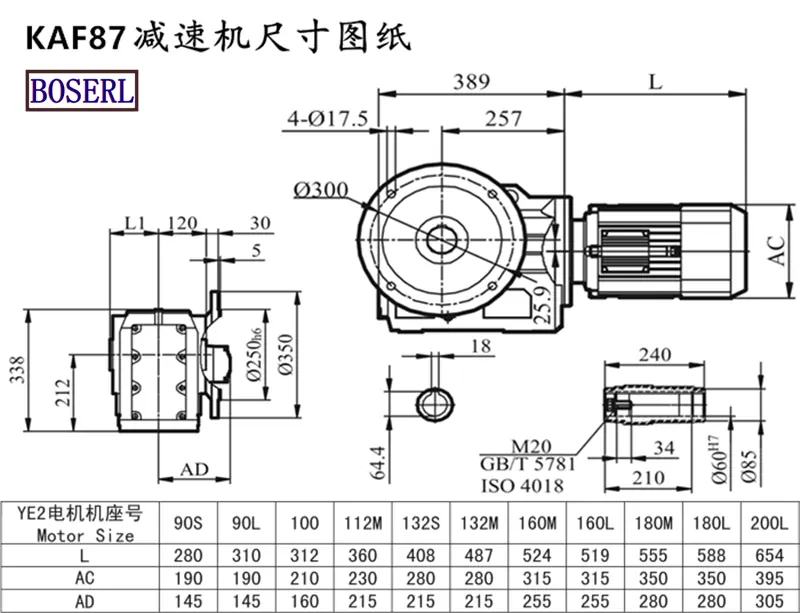

Dimensiones de instalación del reductor KAF87: orificio de salida + chaveta Φ64,4 (personalizable), altura 338 × anchura 266 (con brida de salida) × longitud 390

Modelos de motorreductor KAF87: KAF87-Y0.37KW, KAF87-Y0.55KW, KAF87-Y0.75KW, KAF87-Y1.1KW, KAF87-Y1.5KW, KAF87-Y2.2KW, KAF87-Y3KW, KAF87-Y4KW, KAF87-Y5.5KW, KAF87-Y7.5KW, KAF87-Y11KW, KAF87-Y15KW, KAF87-Y18.5KW, KAF87-Y22KW, KAF87DRN71S4, KAF87DRN80S4, KAF87DRN90L4, KAF87DRN100S 4.KAF87DRN112S4,KAF87DRN132S4,KAF87DRN160S4,KAF87DRN180S4,KAF87DRN200L4,KAF87DV71S4,KAF87DV80S4,KAF87DV90L4,KAF87DV100S4,KAF87DV112S4,KAF87DV132S4,KAF87DV160S4,KAF87DV180S4,KAF87DV200L4,KAF87DM71S4,KAF87DM80S4,KAF87DM90L4,KAF87DM100S4,KAF87DM1 12S4, KAF87DM132S4, KAF87DM160S4, KAF87DM180S4, KAF87DM200L4, KAF87DT71S4, KAF87DT80S4, KAF87DT90L4, KAF87DT100S4, KAF87DT112S4, KAF87DT132S4, KAF87DT160S4, KAF87DT180S4, KAF87DT200L4, KAF87DRS71S4, KAF87DRS80S4, KAF87DRS90L4, KAF87DRS100S4, KAF87DRS112S4, KAF87 DRS132S4, KAF87DRS160S4, KAF87DRS180S4, KAF87DRS200L4, KAF87DR71S4, KAF87DR80S4, KAF87DR90L4, KAF87DR100S4, KAF87DR112S4, KAF87DR132S4, KAF87DR160S4, KAF87 DR180S4, KAF87DR200L4, KAF87DVE71S4, KAF87DVE80S4, KAF87DVE90L4, KAF87DVE100S4, KAF87DVE112S4, KAF87DVE132S 4,KAF87DVE160S4,KAF87DVE180S4,KAF87DVE200L4,KAF87DRN71M4,KAF87DRN80M4,K AF87DRN90M4,KAF87DRN100M4,KAF87DRN112M4,KAF87DRN132M4,KAF87DRN160M4,KAF 87DRN180M4,KAF87DRN180L4,KAF87DV71M4,KAF87DV80M4,KAF87DV90M4,KAF87DV100M4,KAF87DV112M4,KAF87DV132M4,K AF87DV160M4,KAF87DV180M4,KAF87DV180L4,KAF87DT71M4,KAF87DT80M4,KAF87DT9 0M4,KAF87DT100M4,KAF87DT112M4,KAF87DT132M4,KAF87DT160M4,KAF87DT180M4,K AF87DT180L4,KAF87DRS71M4,KAF87DRS80M4,KAF87DRS90M4,KAF87DRS100M4,KAF87DRS112M4,KAF87DRS132M4,KAF87DRS160 M4,KAF87DRS180M4,KAF87DRS180L4,KAF87DR71M4,KAF87DR80M4,KAF87DR90M4,KAF87 DR100M4,KAF87DR112M4,KAF87DR132M4,KAF87DR160M4,KAF87DR180M4,KAF87DR180L4, KAF87DVE71M4,KAF87DVE80M4,KAF87DVE90M4,KAF87DVE100M4,KAF87DVE112M4,KAF87DVE132M4,KAF87DVE160M4,KAF 87DVE180M4,KAF87DVE180L4,KAF87DM71M4,KAF87DM80M4,KAF87DM90M4,KAF87DM100M4,KAF87DM112M4,KAF87DM132M4,KAF87DM160M4,KAF87DM180M4,KAF87DM180L4,KAF87Y71M4,KAF87Y80M4,KAF87Y90M4,KAF87Y100M4,KAF87Y112M4,KAF87Y132M4,KAF87Y160M4,KAF87Y180M4,KAF87Y200M4.
