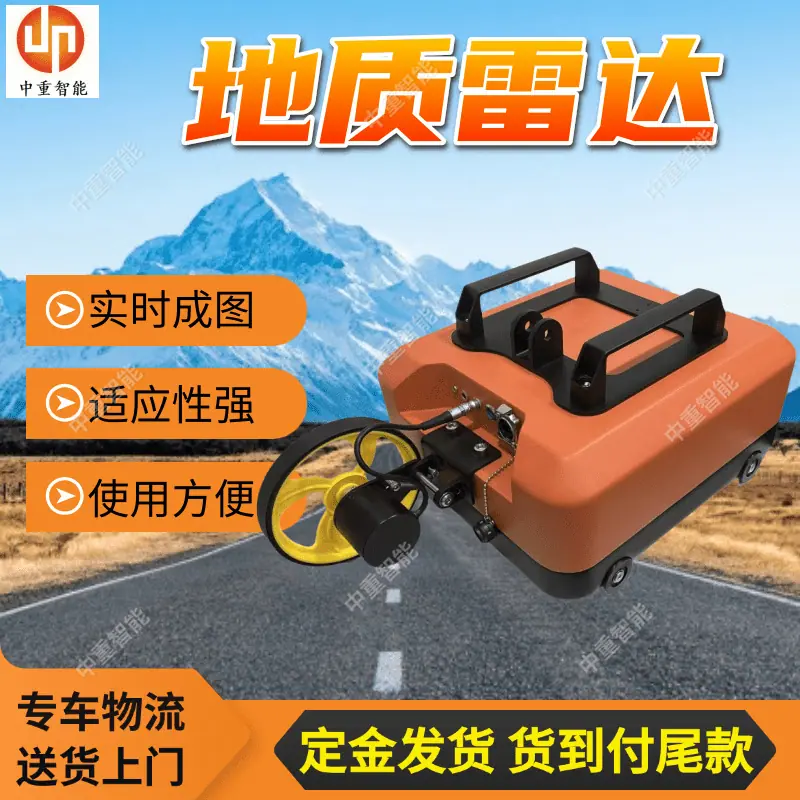

Shrs-R200 Radar de Penetração no Solo Médio e Pesado Suporte Inteligente Personalização Portátil Detecção de Tubulação Radar Subterrâneo

1. Application fields
Geological exploration, geological hazard investigation;
Road distress detection;
Pipeline detection;
Tunnel advance prediction;
Tunnel quality inspection;
2. Product Features

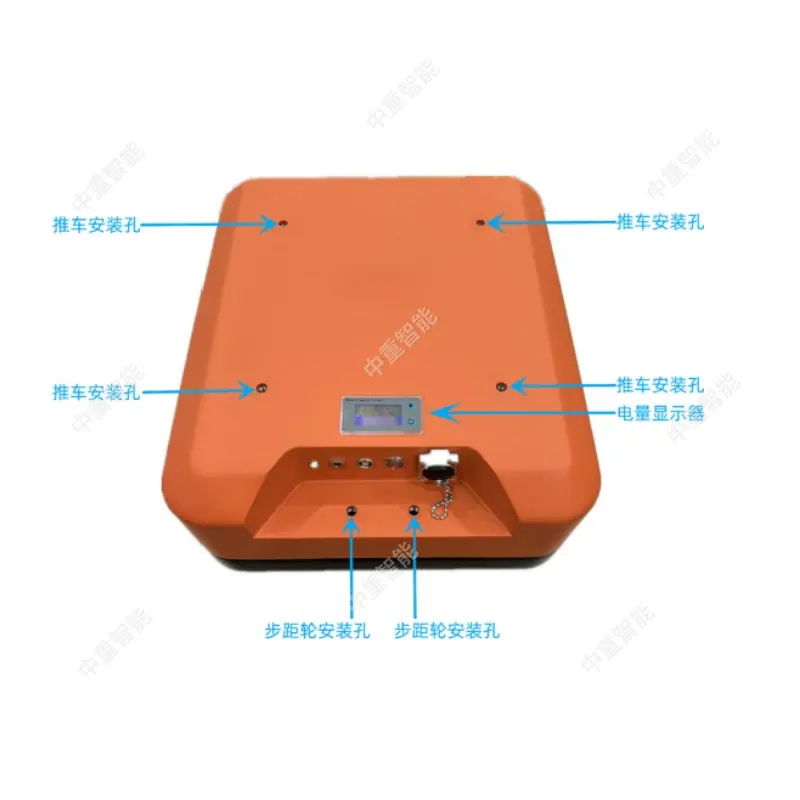

Portable trolley/handheld antenna structure;
Supports laptop computers and handheld mobile terminals;
Real-time GPS location information;
standard network data transmission interface;
Real-time on-site image generation;
The software system supports the full range of antennas;
Three: Performance Indicators
Host: Laptop, Handheld Tablet;
Data interface: network port
AD conversion: 16-bit
Center frequency: 200MHz;
Coupling method: Ground coupling
Detection depth: 0.2-8m
Sampling channels: maximum 512 channels/s
Sampling rate: 5-20GHz selectable;
Sampling length: 512, 1024 optional;
Channel Balance: 1-10 channels;
Gain adjustment: Stepped gain
Real-time processing: inter-channel equalization, background removal, filtering, etc.;
Stroke accuracy: <3mm
Power supply: Built-in rechargeable lithium battery
