Caixa de Junção para Mineração, Caixa de Junção à Prova de Explosão de Transportador Protetor Inteligente Guohua, Caixa de Junção à Prova de Explosão para Comunicação em Mineração

Product Basic Introduction
Mine junction boxes are electrical connection protection devices specifically designed for flammable and explosive environments in coal mines. The entire unit strictly adheres to relevant safety regulations for mining explosion protection. Through special explosion-proof or increased safety structural designs, the internal wire connectors are completely enclosed within a high-strength protective casing. This prevents electrical sparks and high temperatures generated at the circuit connection points from coming into direct contact with the gas and coal dust in the underground environment, thereby preventing the risk of ignition and explosion. The core structure of this type of equipment consists of a thickened explosion-proof casing, terminal blocks, sealing gaskets, and fastening bolts. It can be connected to various underground power supply, communication, and signal circuit systems, providing a safe and reliable protective carrier for the splicing, branching, and transition of underground cables. It is a fundamental supporting component with a wide range of applications in underground electrical systems.
Core Practical Advantages
The mining junction box has undergone multi-dimensional adaptation and optimization for the complex and harsh working conditions underground, forming several characteristics that are well-suited for actual mining use:
The shell is made of high-strength cast iron or flame-retardant ABS material, paired with an explosion-proof joint surface gap design that meets mining standards. It can withstand the instantaneous pressure generated by internal circuit faults and prevent internal sparks from propagating outwards, making it suitable for high-risk environments in mines with high gas content and abundant coal dust.
The interior of the wiring chamber is equipped with independent wiring terminals. The surfaces of the terminals are treated with tin plating for rust prevention. This ensures stable conductive performance even after long-term use in the humid environment of a well, reducing the likelihood of contact problems.
The matching cable entry port uses a special rubber sealing ring. After the cable is inserted, tightening the compression nut forms a complete sealing structure, preventing downhole coal dust and moisture from entering the interior of the junction box and protecting the internal connectors from corrosion.
The entire machine has obtained the complete mining product safety mark certification and can be directly connected to the underground explosion-proof electrical system without additional explosion-proof modifications, complying with the relevant standard requirements for safe use in coal mines.
The casing is equipped with clear wiring markings, allowing for quick identification of the corresponding positions of phase wires, ground wires, and signal wires during on-site wiring operations, thereby reducing the probability of wiring errors in the dim underground environment.
Products of different specifications are suitable for cables of different diameters in the mine. The number of interfaces covers multiple types such as 2-way, 3-way, 4-way, etc., which can meet the connection needs of different circuit branching scenarios without the need for additional splicing accessories.
Main Product Categories
Mine junction boxes can be classified according to multiple dimensions, and different types are precisely adapted to differentiated underground circuit scenarios:
Classified by explosion-proof structure
Mine Explosion-Proof Junction Box: Adopts a thickened cast iron explosion-proof enclosure that can withstand the pressure generated by internal explosions, suitable for connection scenarios in underground power supply circuits, and is a mainstream product category in underground power supply systems.
Mine-used Increased Safety Junction Box: Adopts flame-retardant and increased safety protection structure, focuses on dustproof and waterproof protection, suitable for connection scenarios of low-voltage weak circuits such as underground communication and signaling.
Intrinsically Safe Junction Box for Mines: Suitable for circuit connections in intrinsically safe circuits underground, does not generate enough energy to ignite gas, suitable for monitoring signal circuit scenarios in intelligent mines.
Categorized by function
Mine Power Junction Box: Suitable for connecting power supply cables of 380V, 660V, etc. in the mine, supports high current passage, and is suitable for power line branching of mining equipment and underground lighting systems.
Mine Communication Junction Box: Suitable for splicing downhole optical fiber and communication cables, equipped with a dedicated optical fiber splicing tray inside, which can protect communication connectors from erosion by the downhole environment and ensure the stability of the downhole communication link.
Mine Signal Junction Box: Suitable for connecting signal cables of downhole sensors and monitoring systems, supports simultaneous transfer of multiple cable lines, and is suitable for the wiring layout requirements of downhole safety monitoring systems.
Classified by interface type

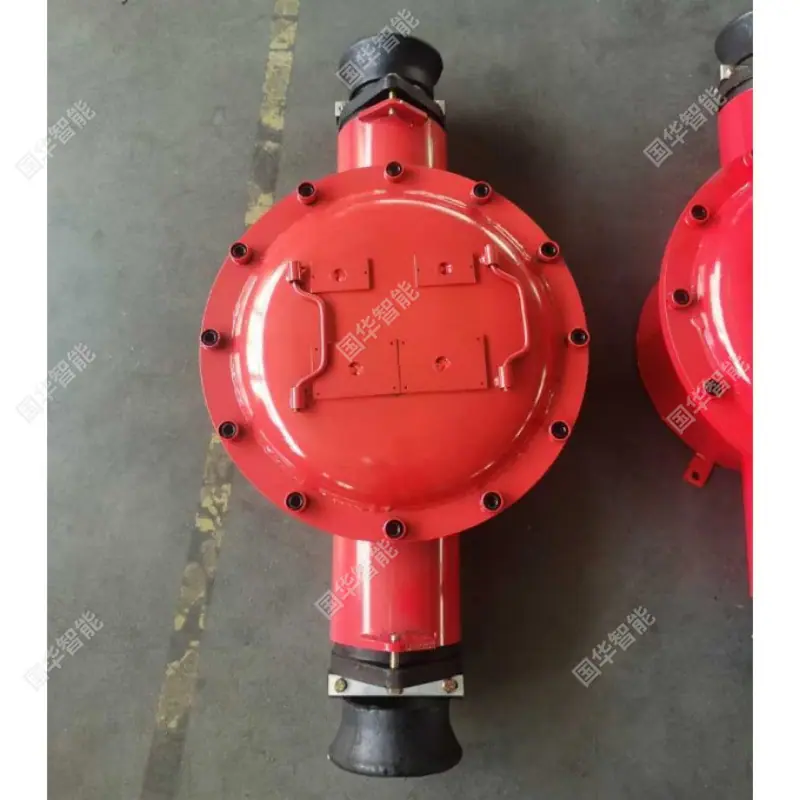

Straight-through Mining Junction Box: Only equipped with two cable entry ports, used for intermediate splicing of the same cable, suitable for cable extension connection scenarios in long-distance roadways.
Three-way Mining Junction Box: Equipped with three cable entry ports, used to branch two sub-circuits from one main circuit, suitable for scenarios where multiple devices in the mine share one main power supply line.
Multi-port Mining Junction Box: Equipped with four or more incoming cable ports, it can simultaneously achieve centralized transfer of multiple cable lines, suitable for centralized connection scenarios of multiple equipment lines inside underground chambers.
Core product selling points
Different sub-types of mining junction boxes have different adaptation characteristics tailored to different underground scenarios, each with its own emphasis:
Mine Explosion-Proof Power Junction Box: Adopts a thickened cast iron shell, with rust-proof treatment on the explosion-proof joint surface. It is suitable for connecting 660V power supply lines in mines and can maintain stable explosion-proof performance even when used long-term in humid and dusty environments.
Mine Communication Junction Box: Built-in dedicated fiber optic splicing tray, shell made of flame-retardant and impact-resistant material, suitable for splicing and connecting underground communication optical cables, protects optical fiber connectors from corrosion by coal dust and moisture, reduces the probability of communication link failures.
Intrinsically Safe Signal Junction Box for Mines: Complies with relevant safety standards for intrinsically safe circuits, suitable for connecting signal lines of monitoring sensors such as methane and carbon monoxide in mines, can be directly connected to the monitoring system circuit of intelligent mines.
Mine-used Small Increased Safety Junction Box: Compact body size, suitable for signal line connection in narrow underground spaces, does not require excessive installation space, suitable for scenarios of connecting scattered sensor lines along the roadway.
Mine High-Voltage Junction Box: Strengthened internal insulation structure, suitable for connecting 10kV high-voltage power supply cables in the mine. The shell strength has undergone special testing and can withstand the instantaneous impact generated by high-voltage circuit faults, suitable for the line connection needs of high-voltage power supply systems in the mine.
